Junction Boxes for Self-Regulating Heating Cables

Designed for connecting self-regulating electric heating cables to the power network and for branching of self-regulating heating cables*.

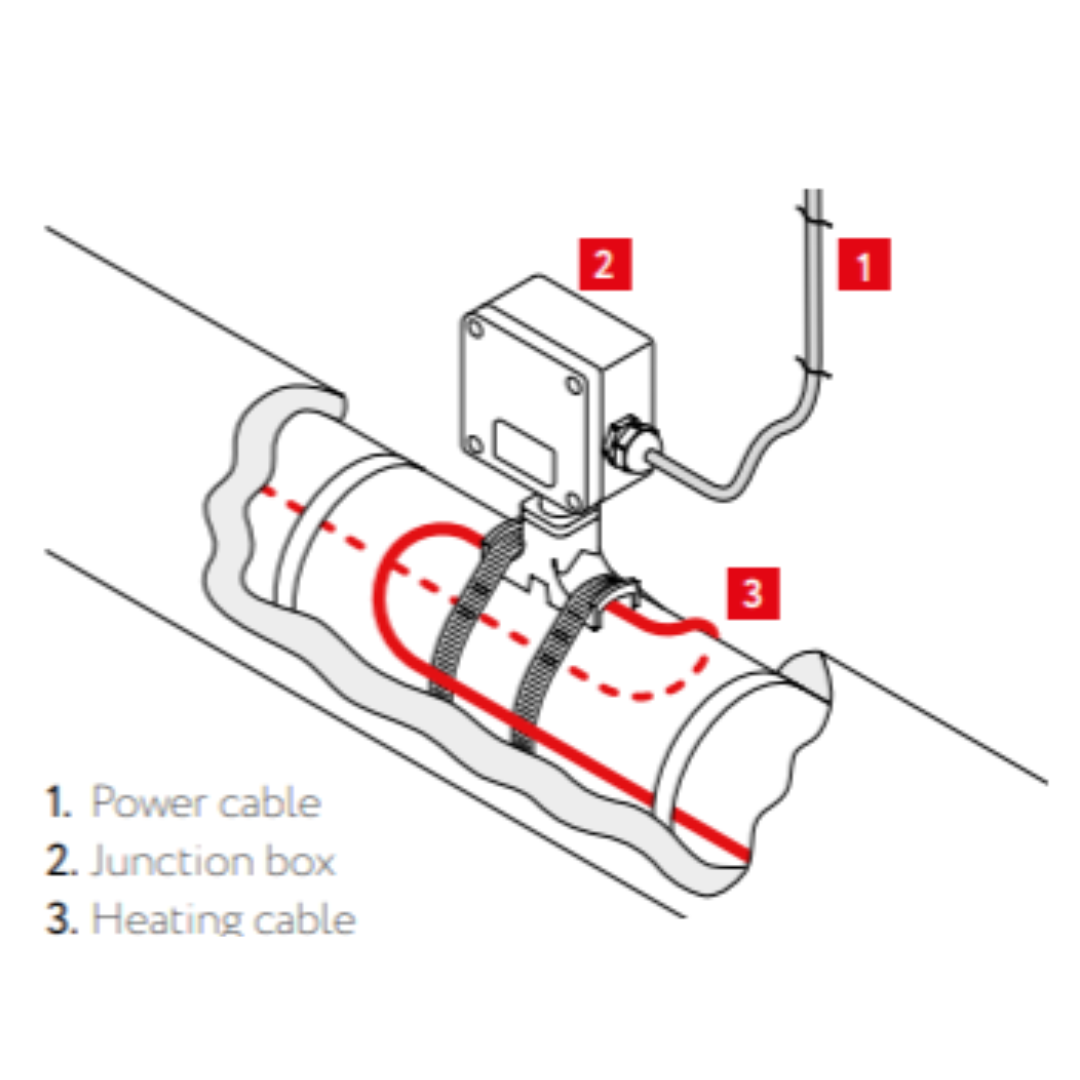

For installation onto a wall, onto a nearby metal structure or using a bracket directly onto the pipeline (brackets supplied separately).

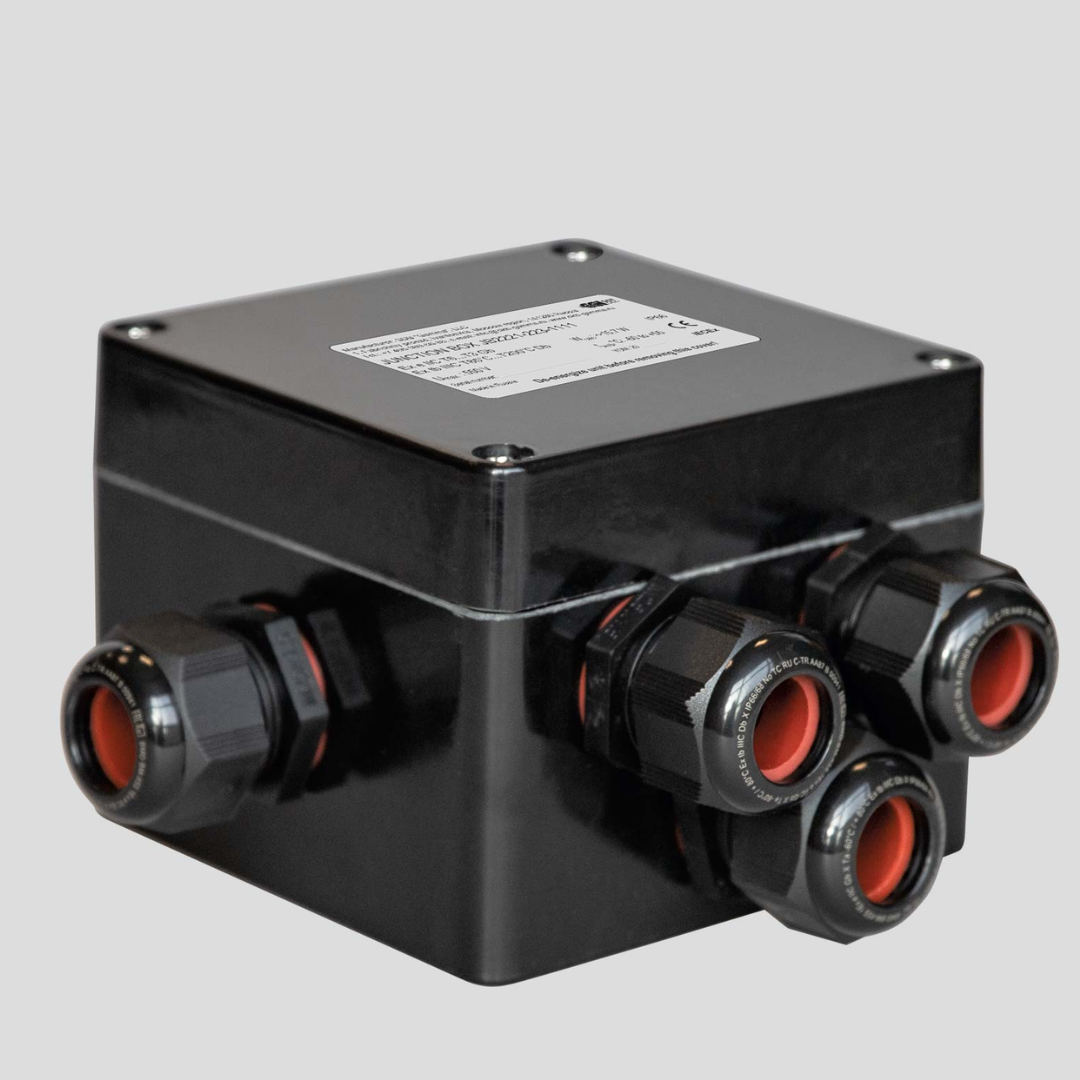

The enclosure design ensures moisture and dust ingress protection IP66 and high corrosion stability.

Cable gland of the box is intended for connecting unarmoured power cables with a diameter of 7 to 18 mm or armored power cables with a diameter of 12 to 20 mm.

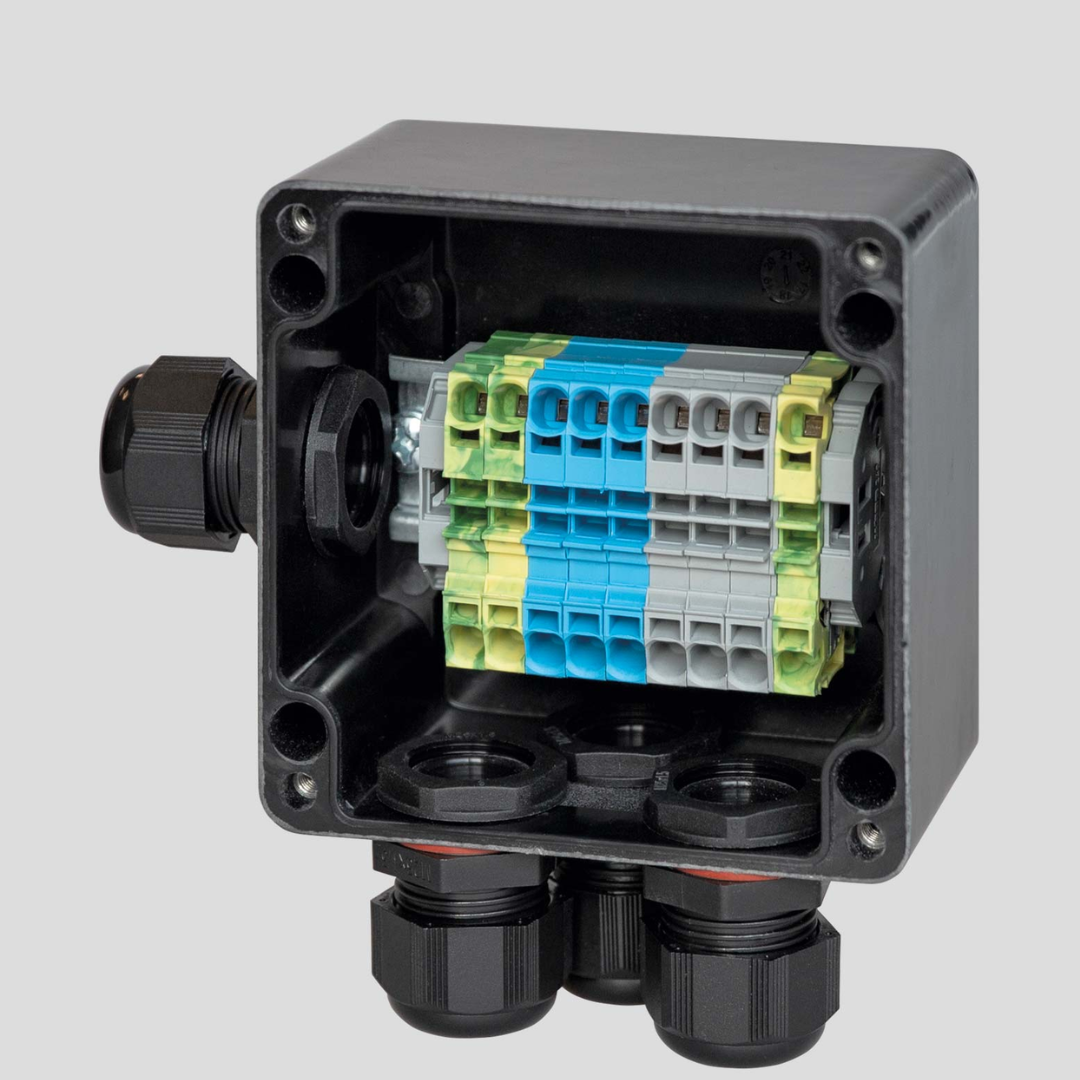

The installed terminal blocks allow the connection of multi-core or single-core wires with a cross-section of 1.5 to 10 mm². Design options with screw or push-in terminals are available to order.

* This junction box is compatible with self-regulating heating cables

or Call 01484 859 700

Details

Trace Heating Products LTD would ship directly to you upon order confirmation.

For the most accurate delivery estimate please get in touch.

Have any questions? We’re always here to help! Please reach out to us with any questions you may have, and we will get back to you promptly.

Call 01484 859 700 or 0151 363 8044
Email sales@thpuk.co.uk

Product Description

Features

Efficient solution for power supply and input of self-regulating heating cables connection through thermal insulation in electric heating cable systems
Compatible with all types of self-regulating electric heating cables
Excludes the risk of damage to heating cables at connection points
Approved for installation in explosion hazard areas

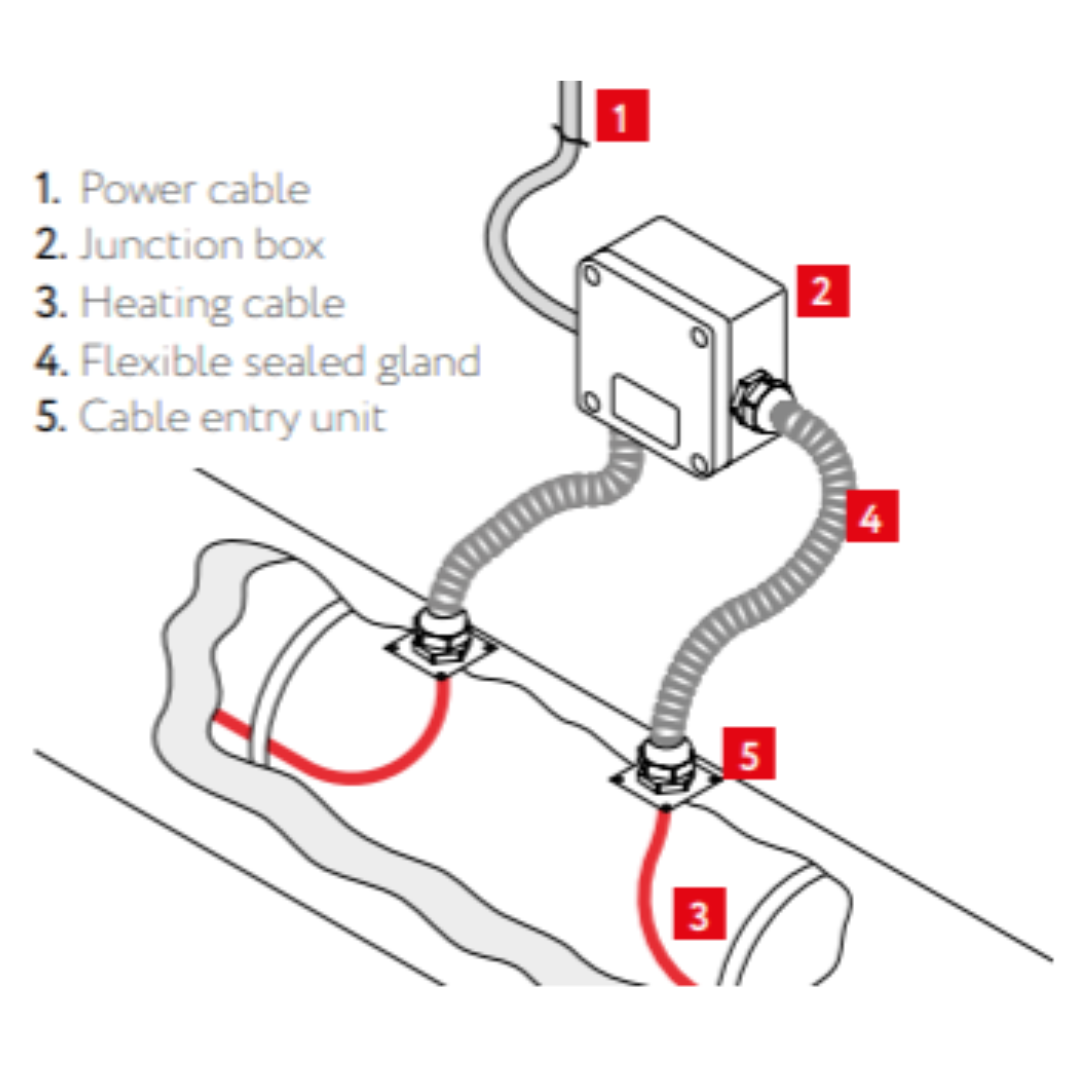

Critical components are included in the scope of supply. Metal pipe strap PFS/3, cable entry unit and flexible sealed gland FSG to be ordered separately.
Wide application range
Quick and easy installation
High thermal stability
Non-corrosive

Application Areas

The box allows connection of up to three self-regulating electric heating cables to the power cable and connection of up to three cables for branching.

Technical Data

Dust and moisture protection rating – IP66
Explosion protection marking – Ex eb IIC T6…T3 Gb, Ex tb IIIC T85°C…, T165°C Db
Temperature group of the explosion hazard area – Т6
Operating ambient temperature range - -60…+55 °С
Operating voltage – max 550 V
Operating current – max 50 A

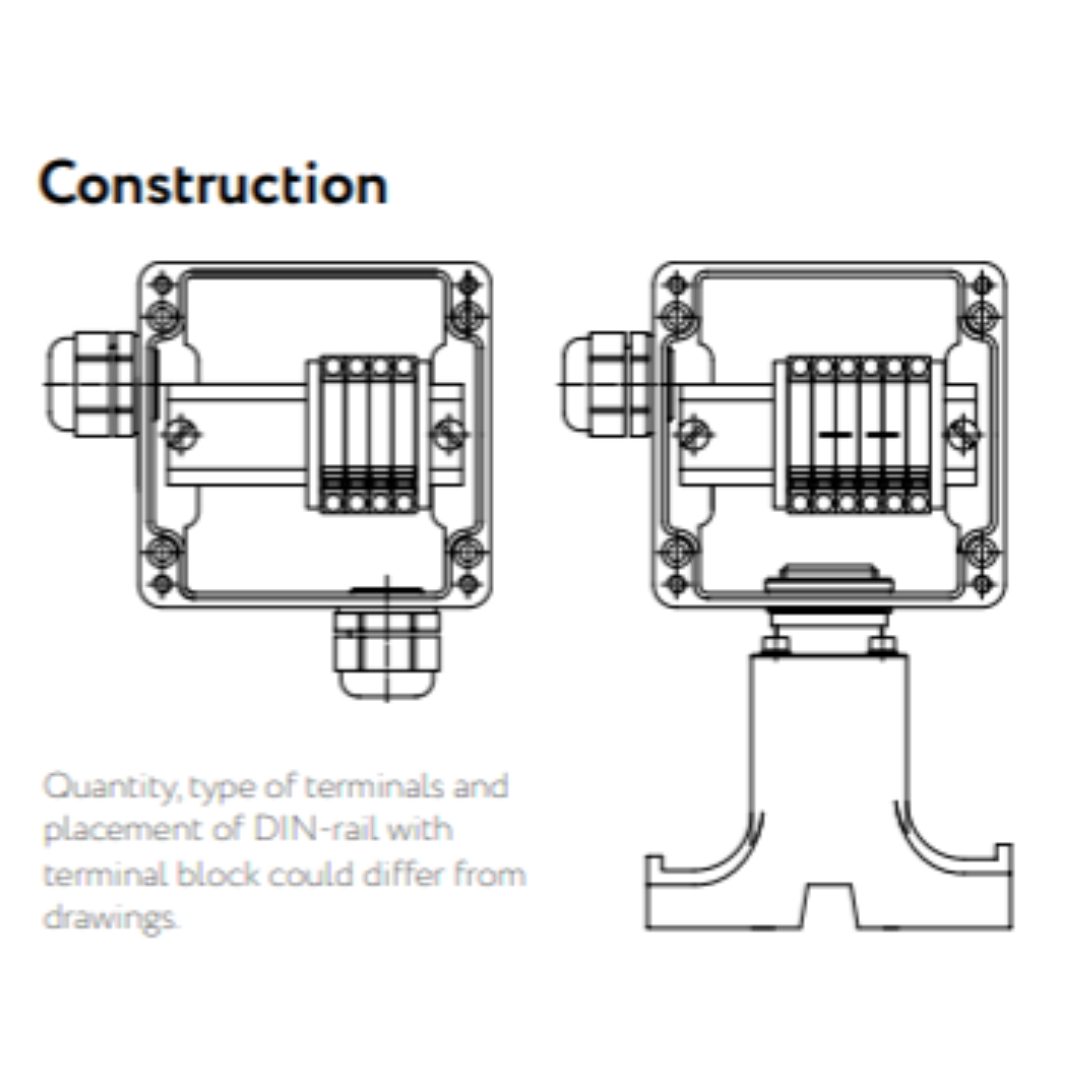

Enclosure dimensions JB 2221-223 – 122×120×91.5 mm
Total weight (maximum) – 1.55 kg
Material Box / Color- Glass fiber reinforced polyester / Black
Material Pipe installation support / Color – Glass fiber reinforced polyester / Black
