For installation onto a wall, onto a nearby metal structure or using a bracket directly onto the pipeline (brackets supplied separately).
or Call 01484 859 700

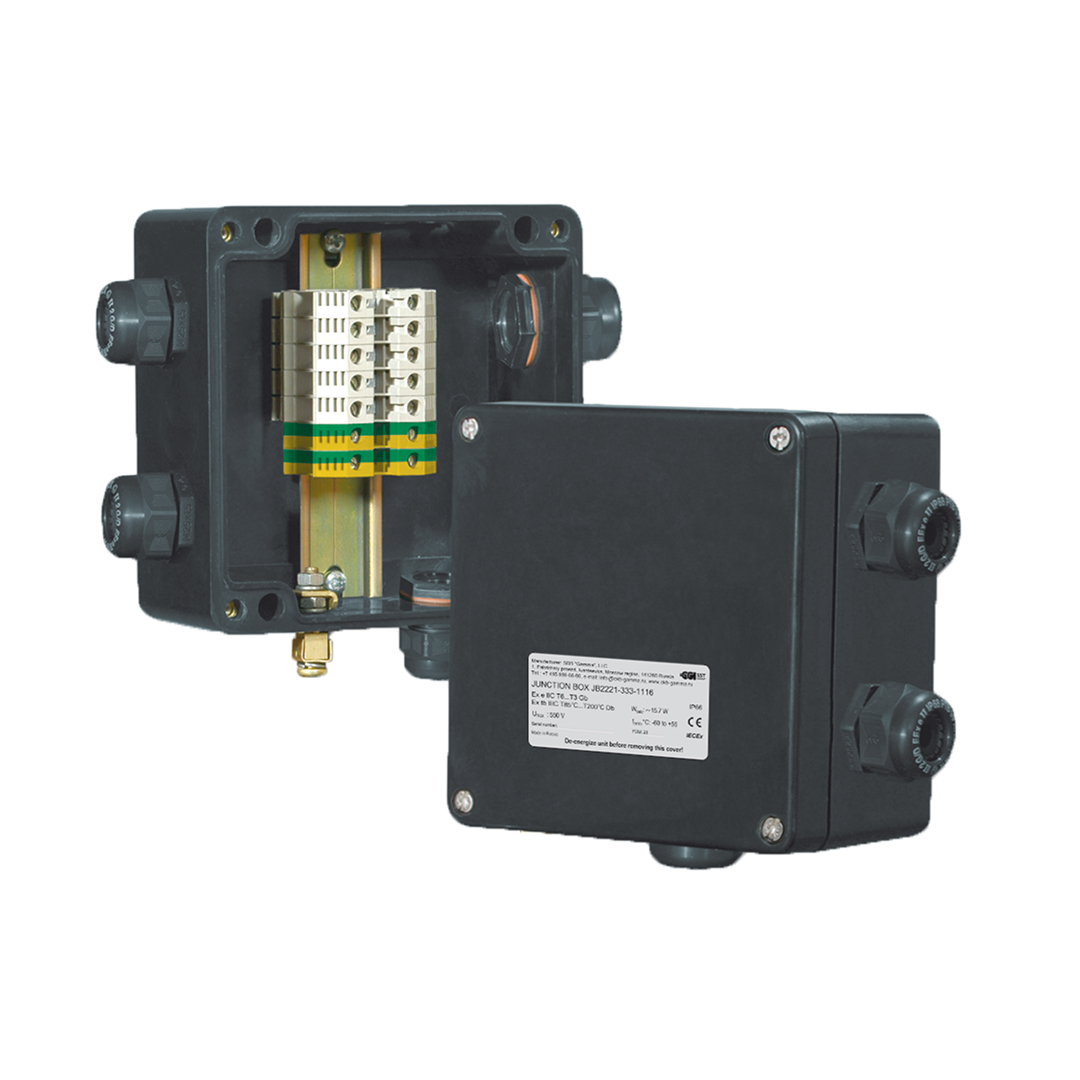

Junction Boxes for Self-Regulating Heating Cables (3 and More Circuits)
Junction Boxes for Self-Regulating Heating Cables (3 and More Circuits)
Details
Trace Heating Products LTD would ship directly to you upon order confirmation.
For the most accurate delivery estimate please get in touch.
Have any questions? We’re always here to help! Please reach out to us with any questions you may have, and we will get back to you promptly.
Call 01484 859 700 or 0151 363 8044
Email sales@thpuk.co.uk
Share this product
Product Description
Application

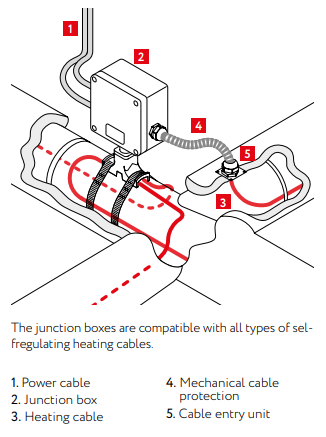

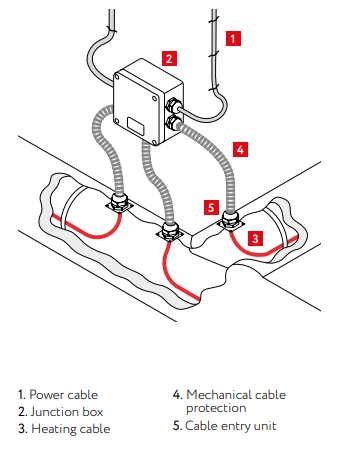

Junction boxes for 3 and more self -regulating heating cables connection are designed for connection of self-regulating electrical heating cables to the bower network and for the branching of self-regulating heating cables. The box also supports branching of the power cable in utility networks.
Accessories (to be ordered separately)
Connection kit for self-regulating heating cables is specified depending on the type of cable used.
Brackets PB, KP, PL.JB0606 – for mounting the box onto the pipeline.
Z-profile – for mounting the box onto a metal structure or onto a wall.
Metal pipe strap PFS/3 – for mounting the bracket onto the pipeline.
Technical Data
Dust and moisture protection rating – IP66
Explosion protection marking – Ех еb IIC Т6…Т3 Gb, Ex tb IIIC T85°C…, T165°C Db
Temperature group of the explosion hazard area – Т6
Operating ambient temperature range – -60…+55 °С
Operating voltage – max 550 V
Operating current – max 50 A
Enclosure dimensions – 160×160×94.5 mm
Total weight (maximum) – 2.76 kg
Material Box / Color – Glass fiber reinforced polyester / Black
